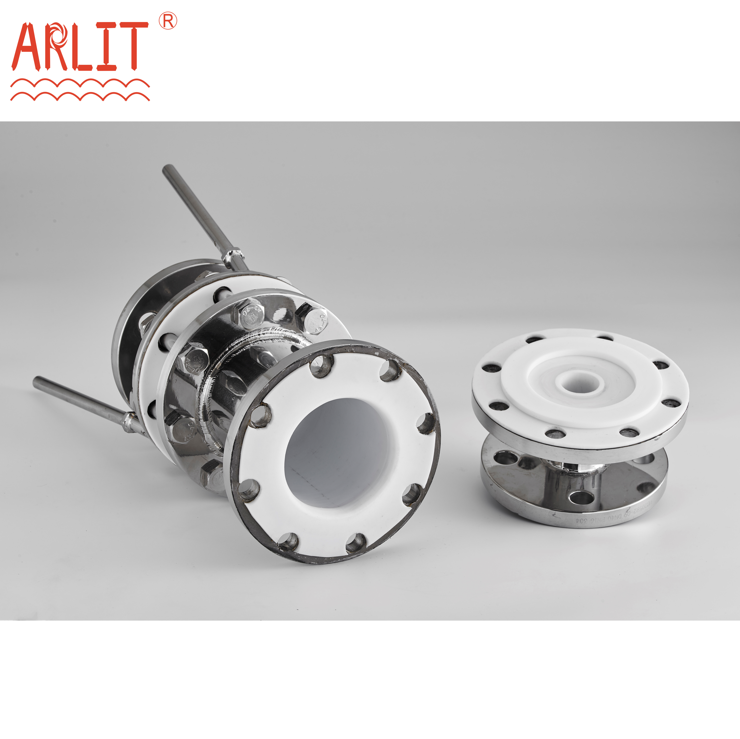

Arlit's filter housing lined PTFE series

Introduction

Arlit's stainless steel filter housing lined PTFE series: the housing is made of SUS304 or 316L stainless steel, and the internal filter insert, screw and pressing plate are all made of PTFE. All the parts of the filter interior that come into contact with the liquid are fully lined PTFE to protect the stainless steel housing from corrosion. Liner PTFE filters are primarily used in the following areas: microelectronic chemicals industry, pharmaceutical industry, ultra pure solvent industry and semiconductor industry, among others. The filtration precision is between 0.05um and 5um, and the PTFE material of DAIKIN is used as the lining material.

Product Description:

Cylinder connection mode: flange

Inlet and outlet: flange

Shell: SUS304 / 316L

Inner wall: PTFE

Screw: PTFE

Pressure plate: PTFE

Support frame: SUS304

Seals: fluororubber, Coated PTFE o-ring encapsulated

Technical parameters:

Maximum pressure: 12bar

Maximum working temperature: 220 ℃

Matching filter element interface: 222, 226

Filter specification:

Filter capacity: 1 core, 3 core, 5 core, 7 core, 9 core, 11 core, 13 core

Filter length: 5 ", 10", 20 ", 30", 40 "
