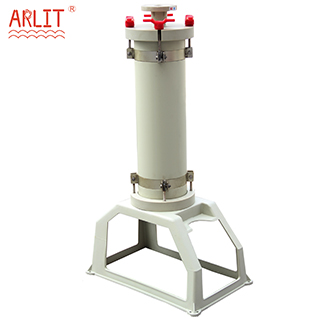

AR Series PP Precision Filter
AR series PP precision filter is a professional filter developed and designed for the electronic components and chemical industry. The main body of the filter is made of PP material for injection molding. The main characteristics are acid and alkali resistance, high temperature resistance, corrosion resistance, idling resistance, no leakage, low noise, high efficiency, wide filtration area, simple operation, easy cleaning and long service life. It is widely used in terminal filtration of electronic components and chemical industry.
Outlet and inlet diameter：Chinese Standard or customization
Connection Type: Union, Flange
Material：PP
Gasket / O-ring：EPDM, VITON
Filter cartridge：Pleated filter cartridge
Typical Applications:
Electronic : PCB, LED, etc.
Chemical industry: Electroplating solution, organic solvent filtration, etc
|
Item / model |
|
AR-2001 |
AR-2003 |
AR-2005 |
|
Plating tank（ton） |
|
0.4 |
0.8 |
1-2 |
|
Flow rate（L/min) |
|
30 |
80 |
150 |
|
|
PP |
PP |
PP |
|
|
|
20”×1 |
20”×3 |
20”×5 |
|
|
|
70 |
70 |
70 |
|
|
Size |
520 |
620 |
760 |
|
|
310 |
385 |
450 |
||
|
|
1015 |
1080 |
1420 |
|
|
Weight（KG) |
|
8.57 |
14.13 |
19.78 |
|
|
3/4” |
1” |
1-1/2” |
