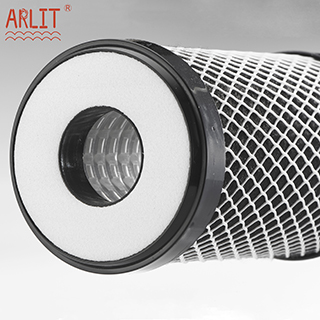

Carbon fiber filter cartridge

Introduction

The high efficiency Activated Carbon-Impregnated Celloluse Filter Cartridge manufactured by ARLIT is made of activated carbon material and fiber material by pouring technology. It has a larger filtering area than the carbon fiber filter cartridge by ordinary surrounding technology. It can absorb organic matter in a shorter time to improve the treatment efficiency. At the same time, the special activated carbon formula and surface design brings two major characteristics of filtering precipitated particles & removing the odor, sediment, pigment, VOC and organic chemicals in tap water and industrial liquids. It is also the filter cartridge needed in the refining process with better treatment of flowing or static liquid. It uses PP material reinforced encapsulation & external net cover to improve the strength of the filter and the collection capacity of dirt. The filter cartridge is suitable for ABS electroplating, PCB electroplating, electronic and electrical industry, semiconductor FRAME electroplating solution and electroplating solution of copper and nickel.

Specifications  and Technical Parameters

Master material construction:  Powdered activated carbon perfusion fibre vehicle,

End Cap/Central Tube/Fiber/Strong PP sleeve mixed with multi-component grease

Inner Diameter: 30mm±1mm

Outer Diameter: 63mm±2mm

Operating Temperature: 5℃～65℃

Working Pressure:≤ 3bar

Liquid flow Ref: 2T/H  (10inch), Depending on different filter media

Carbon host content：10inch ≥100g

Length: 10/20/30 inch

Pore Size: 5/10 μm
