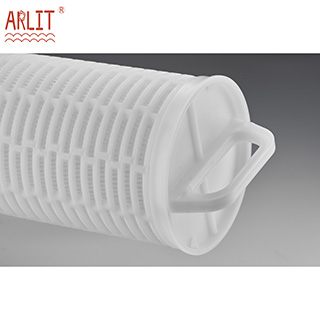

152mm Series filter cartridge

Introduction:

ARLIT's large flow filter cartridge is 6 inch, pleated, large diameter cylindrical structure welded pleated membrane. Method of filtration is outside pressure,

It has a very high filtration area, high retention rate and high flow. Prolong filter cartridge life so that reduce replacement frequency.A wide range of chemical applications can be applied to a variety of industries security filtration and pre-filtration.

Typical applications:

Appilcations: Pre-filtration of reverse osmosis system, purification of various process water

General industry: all kinds of process fluid, process water, condensate, cooling water, waste water treatment, etc

Electronic industry: Pre-filtration of deionized water

Food industry: filtration of process water

Chemical / petrochemical industry： All kinds of acid, alkali, solvent, quench cold water, brine and other filtration

Power plant: make up water, condensate water, stator cooling water and other filtration

Specifications and technical parameteres:

Size of filter cartridge:

Diameter: 6 inch ( 152mm)

Length: 40 inch

Construction:

Membrane: PP

Membrane Support: PP

Outer Barrel & inner core: PP

End cap: PP

Gasket / O ring: silicone, EPDM

Sealing technique: Thermal bonding

Pore size:

1μm、5μm、10μm、20μm、30μm、50μm、60μm、80μm、100μm

Operating condition:

Max. operating temperature:Polypropylene(PP)≤82℃

Max. forwarder differential pressure:Polypropylene(PP) 3.44bar (82℃)

Replace filter cartridge differential pressure: 2.4Bar (20℃)

Maximum design flow: 48m³/H

Method of filtration: Outside Pressure
